Architectural Flexible Stainless Steel Cable Mesh Building Material 1.5-3.2 Wire Dia

Basic Information
Place of Origin: Hebei, China
Brand Name: Yuntong
Certification: CE , SGS
Model Number: YT-S-1617
Minimum Order Quantity: 10 square meters
Packaging Details: Package water-proof cloth inside then wooden box outside
Delivery Time: About 8-10 Work Days
Payment Terms: T/T, Western Union,PayPal, L/C
Supply Ability: 300 Square meters per week
Product Name: Stainless Steel X-tend Decorative Fence Rope Mesh Wire Diameter: 1.5mm-3.2mm
Mesh Eye Size: 30x30 To 100x100mm Or Bigger Cable Mesh Type: Knotted, Ferrule
Shippment: Express, Air Or Sea Sample: Allowed
Cable Mesh Construction: 7x7, 7x19
High Light:

balustrade safety netting

,

metal rope mesh



Building Material Architectural Stainless Steel Cable Mesh

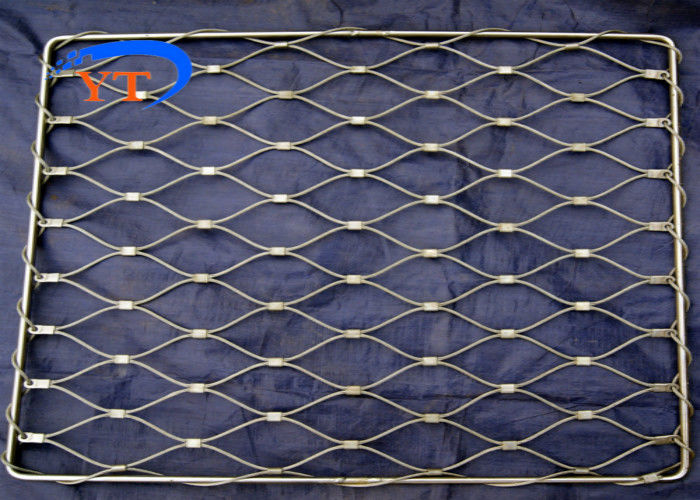

Stainless Steel Cable Mesh is rhombus mesh, has excellent flexible performance, virtually indestructible, most impacting-resistant and breaking resistant force, most resisting rain, snow, hurricane. As the material is virtually indestructible stainless steel, then it can be safely contain any species on land, in the air indoors or out. No matter how large, how small, or how cunning you specimens are, we assure their complete security.



Stainless Steel Cable Mesh Description:


Cable Mesh Constructure

Cable Mesh Diameter

(inch)

Mesh Aperture

(mm)

Min.Breaking Load(KN)

7x19 1/8'' 120x208 7.38
7x19 1/8'' 100x173 7.38
7x19 1/8'' 90x156 7.38
7x7 3/32'' 100x173 4.18
7x7 3/32'' 90x156 4.18
7x7 3/32'' 80x139 4.18
7x7 3/32'' 70x121 4.18
7x7 5/64'' 100x173 3.17
7x7 5/64'' 90x156 3.17
7x7 5/64'' 80x139 3.17
7x7 5/64'' 70x121 3.17
7x7 1/16'' 80x139 2.17
7x7 1/16'' 70x121 2.17
7x7 1/16'' 60x104 2.17
7x7 1/16'' 50x87 2.17
7x7 3/64'' 80x139 1.22
7x7 3/64'' 70x121 1.22
7x7 3/64'' 60x104 1.22
7x7 3/64'' 50x87 1.22



Stainless Steel Cable Mesh Charecteristic :


1. Soft to the touch, can't hurt hands.
2. Light weight, but strong.

3. Excellent flexibility for tough installations.
4. Life span more than 30 years.
5. Environmental degradation resistant, say, corrosion, ultraviolet.



Stainless Steel Cable Mesh Type:


1). knotted mesh is a kind of plain weave, each warp wire rope crosses alternately above and below each       weft wire rope. Warp and weft wire ropes generally have the same diameter.

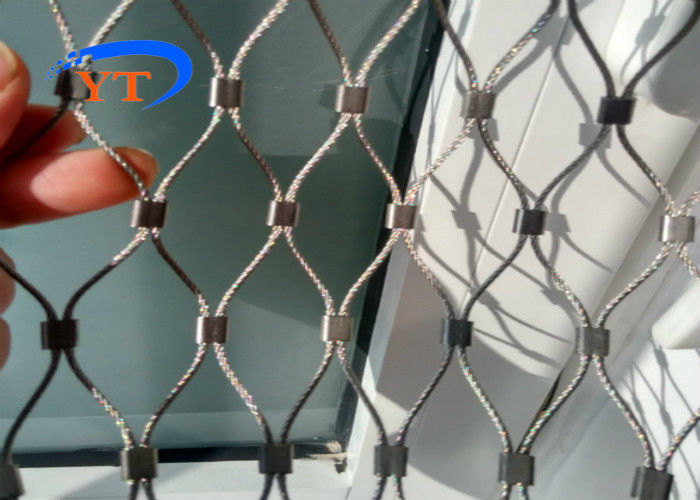

2). ferruled mesh is of the same physical properties with the knotted mesh, the only difference is in the

    combination style, the stainless wire rope are combined by the ferrules which are made of the same

    grade stainless steel.
