Commercial 304 Stainless Steel Woven Wire Mesh For Architecture Netting

Basic Information
Place of Origin: Hebei,China
Brand Name: Yuntong
Certification: CE
Model Number: YT-AS256
Minimum Order Quantity: 10 Square meters
Packaging Details: Water-proof fabric cloth inside,carton box outside
Delivery Time: 7-10 work days
Payment Terms: T/T, Paypal,L/C, Western Union
Supply Ability: 500 Suqare meters per week
Product Name: Architectural Flexible Stainless Steel Ferrule Rope Mesh Material: AISI 304
Cable Structure: 7x19,7x7 Cable Diameter: 1/8'',3/32'',1/16'',3/64''
Mesh Opening: 1''x1'',1-1/2''x1-1/2'',2''x2'',3''x3'',4''x4'',etc. Weave Style: Plain Weave
Flow Of Production: 100% Hand Made
High Light:

architectural mesh cladding

,

metal wire mesh facade cladding

304 Stainless Steel Woven Wire Mesh For Architecture Netting



Stainless steel rope mesh used for anti-hill mesh, Architectural mesh, aviary mesh, zoo fencing, farm fencing and other security mesh, with stainless steel material and feature of rust-proof , strongess and durability.There are two kinds of stainless steel rope mesh, one is ferruled rope mesh the other is woven rope mesh.

Ferruled rope mesh is of the same physical properties with the knotted mesh, the only difference is in the combination style, the stainless wire rope are combined by the ferrules which are made of the same grade stainless steel.

Woven rope mesh is a kind of plain weave, each warp wire rope crosses alternately above and below each weft wire rope. Warp and weft wire ropes generally have the same diameter.



Stainless Steel Rope Mesh Specifications:



Material Stainless steel 304
Cabel Wire Diameter 1/8'',3/32'',1/16'',3/64''
Mesh Opening 1''x1'',1-1/2''x1-1/2'',2''x2'',3''x3'',4''x4'',etc.
Package Carton box
Mesh Finished Stainless Steel Polished



Stainless steel Rope Mesh Features:



1. Light weight, high strength

2. Soft touch

3. Environmental degradation of its no influence

4. For rough installation tolerance

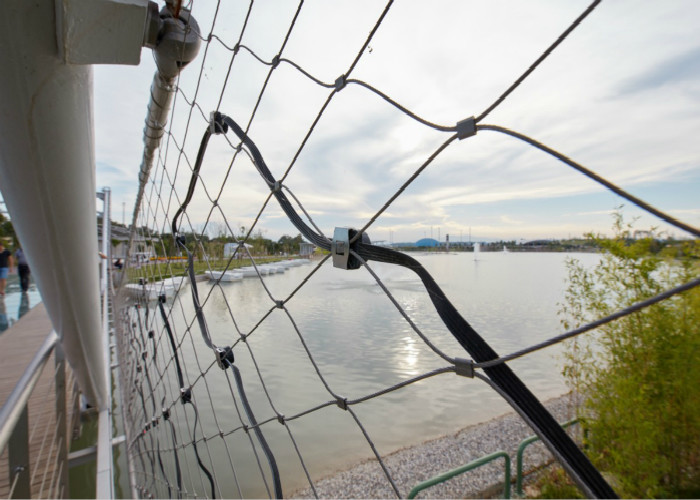

Stainless Steel Rope Mesh:

Commercial 304 Stainless Steel Woven Wire Mesh For Architecture Netting 0
