| Place of Origin: | Hebei |
|---|---|
| Brand Name: | Yuntong |
| Certification: | CE , SGS |
| Model Number: | YT-B-O |
| Minimum Order Quantity: | 10 Sqm |
| Packaging Details: | Package film for each piece,Several pieces packed in 1 carton |
| Delivery Time: | 5-8 Work Days |
| Payment Terms: | T/T, Western Union,PayPal |
| Supply Ability: | 300Sqm/Week |
| Material: | High Grade AISI316 | Wire Rope: | 1.2 Mm To 4.0 Mm |
|---|---|---|---|
| Rope Constructions: | 7 X 7 , 7 X 19 | Mesh Type: | Ferruled |
| Finished: | Ultrasonic Bath | Mesh Orientation: | Horizontal , Vertical |
| Width: | Custom-made | Length: | Custom-made |
| Highlight: | woven rope mesh,wire rope ferrule mesh |
||

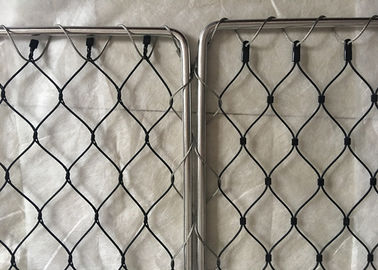

Flexible X Tend Stainless Steel Rhombus Cable Wire Mesh
X-tend Cable Wire Mesh Specifications Sheet :
|
Hole Size (Opening) |
1.2MM(3/64) (7 x 7 ) |
1.6MM(1/16) (7 x 7 ) |
2.0MM(5/64) (7 x 7 ) |
2.4MM(3/32) (7 x 7 ) |
3.2MM(1/8) (7 x 19 ) |
| 20 x 35mm | YT-1235 | ||||
| 25 x 42mm | YT-1225 | YT-1625 | |||
| 30 x 52mm | YT-1230 | YT-1630 | YT-2030 | ||
| 35 x 60mm | YT-1235 | YT-1635 | YT-2035 | ||
| 38 x 66mm | YT-1238 | YT-1638 | YT-2038 | YT-2438 | |
| 40 x 69mm | YT-1240 | YT-1640 | YT-2040 | YT-2440 | YT-3040 |
| 50 x 86mm | YT-1250 | YT-1650 | YT-2050 | YT-2450 | YT-3050 |
| 60 x 104mm | YT-1260 | YT-1660 | YT-2060 | YT-2460 | YT-3060 |
| 70 x 120mm | YT-1270 | YT-1670 | YT-2070 | YT-2470 | YT-3070 |
| 76 x 131mm | YT-1276 | YT-1676 | YT-2076 | YT-2476 | YT-3076 |
| 80 x 138mm | YT-1280 | YT-1680 | YT-2080 | YT-2480 | YT-3080 |
| 90 x 154mm | YT-1290 | YT-1690 | YT-2090 | YT-2490 | YT-3090 |
| 100 x 173mm | YT-12100 | YT-16100 | YT-20100 | YT-24100 | YT-30100 |
| 120 x 206mm | YT-12120 | YT-16120 | YT-20120 | YT-24120 | YT-30120 |
Mesh can be applied in either a vertical or horizontal direction, again dependent on the design ;
Stainless Steel X-tend Cable Wire Mesh is a unique , patented fabric that is as flexible as you are . It is the only 100% stainless steel product in the word to gracefully and beautifully adapt to your most challenging 3-D tensile project .
Cable Wire Mesh Webnet is custom manufactured to in widths and lengths to suit your balustrade, railing or architectural application. Diagonal and irregular shapes can also be supplied.
Mesh sizes range from 25mm x 25mm to 250mm x 250mm with stainless cable diameters from 1.2mm to 3.2mm.
Our services range from ferruled cable wire mesh , knotted cable mesh to various installation's accessories .Also we can provide black oxide cable wire mesh .
