Place of Origin: | Hebei |
---|---|
Brand Name: | Yuntong |
Certification: | CE , SGS |
Model Number: | YT--F-2050 |
Minimum Order Quantity: | 10 Sqm |
Packaging Details: | Package film for each piece,Several pieces packed in 1 carton |
Delivery Time: | 5-8 Work Days |
Payment Terms: | T/T, Western Union,PayPal |
Supply Ability: | 300Sqm/Week |
Rope Constructions: | 7 X 7 | Material: | Stainless Steel 304 , 316 , 316L |
---|---|---|---|
Wire Rope: | 3.0mm , 2.5mm , 2.0mm , 1.5mm , 1.2mm | Application: | Animal Enclosure , Zoological Enclosures |
Mesh Style: | Ferruled | Mesh Orientation: | Horizontal , Vertical |
Mesh Shape: | Rhombus , Diamond | Mesh Angle: | 60 Degree |
Hole Size: | 50x86mm , 60 X 104mm | ||
High Light: | sus316 zoo mesh,high strength zoomesh,zoo knotted rope mesh |

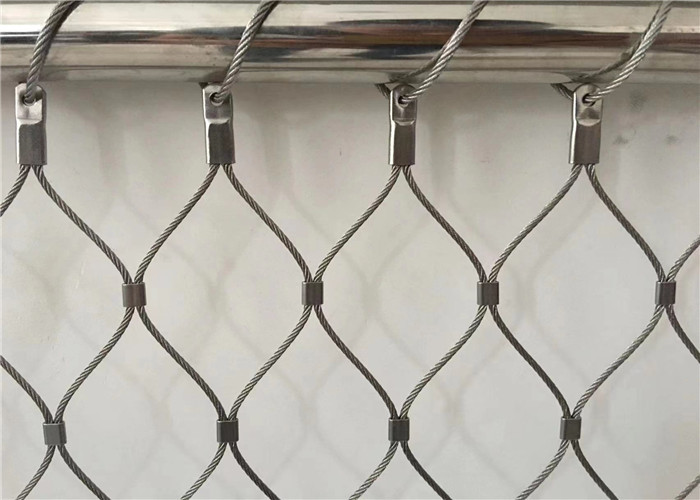

polished surface zoo wire mesh with stainless steel wire rope
zoo Wire Mesh Specifications Sheet :
Hole Size (Opening) |
1.2MM(3/64) (7 x 7 ) |
1.6MM(1/16) (7 x 7 ) |
2.0MM(5/64) (7 x 7 ) |
2.4MM(3/32) (7 x 7 ) |
3.2MM(1/8) (7 x 19 ) |
20 x 35mm | YT-1235 | ||||
25 x 42mm | YT-1225 | YT-1625 | |||
30 x 52mm | YT-1230 | YT-1630 | YT-2030 | ||
35 x 60mm | YT-1235 | YT-1635 | YT-2035 | ||
38 x 66mm | YT-1238 | YT-1638 | YT-2038 | YT-2438 | |
40 x 69mm | YT-1240 | YT-1640 | YT-2040 | YT-2440 | YT-3040 |
50 x 86mm | YT-1250 | YT-1650 | YT-2050 | YT-2450 | YT-3050 |
60 x 104mm | YT-1260 | YT-1660 | YT-2060 | YT-2460 | YT-3060 |
70 x 120mm | YT-1270 | YT-1670 | YT-2070 | YT-2470 | YT-3070 |
76 x 131mm | YT-1276 | YT-1676 | YT-2076 | YT-2476 | YT-3076 |
80 x 138mm | YT-1280 | YT-1680 | YT-2080 | YT-2480 | YT-3080 |
90 x 154mm | YT-1290 | YT-1690 | YT-2090 | YT-2490 | YT-3090 |
100 x 173mm | YT-12100 | YT-16100 | YT-20100 | YT-24100 | YT-30100 |
120 x 206mm | YT-12120 | YT-16120 | YT-20120 | YT-24120 | YT-30120 |
Material of Mesh : Stainless steel 304,304L,316,306L etc.
SS304 | (%) C:≤0.07, Si :≤1.0, Mn :≤2.0, Cr :17.0-19.0, Ni :8.0-11.0, S :≤0.03, P :≤0.035 |
SS316 | (%) C:≤0.08, Si:≤1.00, Mn:≤2.00, P≤:0.035, S:≤0.03, Ni:10.0-14.0, Cr:16.0-18.5 |
SS316L | (%)C:≤0.03, Si:≤1.00, Mn:≤2.00, P:≤0.045, S:≤0.030, Cr:16.0~18.0, Ni:12.0~15.0 |
zoo wire Mesh Features:
1.Light weight, high strength, not easy to corrode.
2.Good flexibility, fatigue resistance, impact resistance, high breaking force, and the overall structure is sturdy and durable. 3.The service life is more than 30 years, close to nature, green and environmental protection,
4.With good perspective, luxurious appearance and novel style, it is a great landscape in itself.
