Customizable 2.5mm Wire Balustrade Cable Mesh Rope Netting For Staircase Fence

Basic Information
Place of Origin: China
Brand Name: YUNTONG
Certification: CE
Model Number: YT-F2560
Minimum Order Quantity: 5
Price: USD 5-25/m2
Packaging Details: wooden case
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 8000m2/week
Material: SUS 304 SUS 316 Wire Diameter: 1.2 Mm 1.5mm 2.0mm 2.5mm 3.0mm 4.0mm
Size Of Hole: 25*25mm-300*300mm Height: Customized
Length: Customized Characteristic: Anti-corrosion Non-rusting Anti Acid And Alkali
Application: Protective, Fall Prevention Weave Style: Plain Weave,Ferruled,knotted/ferrule,Woven Or Ferruled
High Light:

2.5mm Wire Balustrade Cable Mesh

,

Customizable Balustrade Cable Mesh

,

Customizable wire rope mesh netting

Customized Rope Netting for Staircase Fence 2.5 mm Wire


The Stainless Steel cable mesh  Protection are hand-made from the stainless steel wire rope, cable Mesh Description is custom manufactured to in widths and lengths to suit the balustrade, railing or architectural application. Diagonal and irregular shapes can also be supplied.



1. Specification as follows:
Material:stainless steel 304, 304L, 316, 316L
Mesh type: 1.Woven 2. Ferrule mesh
cable structures:7 x7, 7 x19

Cable Diameter:1/8", 3/32", 1/16" 1/12", and 3/64"

Mesh Size:1"x 1", 1-1/2"x1-1/2", 2"x2", 3"x3", and 4"x4".

Height: general 0.5-30meter or customized.
Length: general 0.5-30meter or customized.
Shape: There are irregular shape, triangle parallelogram trapezoid etc.



Flexible Stainless Steel Cable Mesh(Ferrule Type)
Item No.s Cable Diameter

Mesh Opening Size

(W×H)

Normal Break



  inch mm inch mm

ibs.



YT-3212F 1/8 3.2 4.75×8.23 120×207.8 1,600
YT-3210F 1/8 3.2 4×6.9 102×176.7 1,600
YT-3211F 1/8 3.2 3.5×6.15 90×156 1,600
YT-3212F 1/8 3.2 3×5.2 76×131.6 1,600
YT-3213F 1/8 3.2 2×3.46 51×88.3 1,600
YT-3214F 3/32 2.4 4×6.9 102×176.7 920
YT-3215F 3/32 2.4 3.55×6.15 90×156 920
YT-3216F 3/32 2.4 3×5.2 76×131.6 920
YT-3217F 3/32 2.4 2.4×4.16 60×104 920
YT-3218F 3/32 2.4 2×3.46 51×88.3 920
YT-3219F 5/64 2.0 3×5.2 76×131.6 676
YT-3220F 5/64 2.0 2.4×4.16 60×104 676
YT-3221F 5/64 2.0 2×3.46 51×88.3 676
YT-3222F 5/64 2.0 1-1/2×2.6 38×65.8 676
YT-3223F 1/16 1.6 1.2×2.08 76×131.6 480
YT-3224F 1/16 1.6 2×3.46 51×88.3 480
YT-3225F 1/16 1.6 1-1/2×2.6 38×65.8 480
YT-3226F 1/16 1.6 1.2×2.08 30×52 480
YT-3227F 1/16 1.6 1×1.73 25.4×44 480
YT-3228F 3/64 1.2 1-1/2×2.6 38×65.8 270
YT-3229F 3/64 1.2 1.2×2.08 30×52 270
YT-3230F 3/64 1.2 1×1.73 25.4×44 270
YT-3231F 3/64 1.2 4/5×1.39 20×34.6 270
Customizable 2.5mm Wire Balustrade Cable Mesh Rope Netting For Staircase Fence 0



2. cable structures and mesh type:



1. Knotted mesh is a kind of plain weave, each warp wire rope crosses alternately above and below each weft wire rope. Warp and weft wire ropes generally have the same diameter.



2.Ferruled mesh is of the same physical properties with the knotted mesh, the only difference is in the combination style, the stainless wire rope are combined by the ferrules which are made of the same grade stainless steel.


Customizable 2.5mm Wire Balustrade Cable Mesh Rope Netting For Staircase Fence 1



3. Introduce:
Stainless steel wire cable Netting is also known as safety netting system. It is widely used in slope reinforcement.The system,mainly made up of wire ,enjoy the basic functions to cover (initiative protection) and intercept (passive protection) so as to defend various geological disasters.

Customizable 2.5mm Wire Balustrade Cable Mesh Rope Netting For Staircase Fence 2

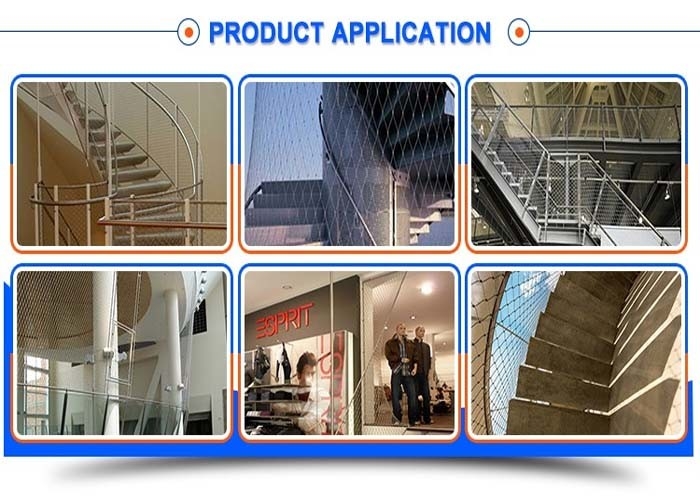

4.Application:

It is widely used in: Animal Enclosure mesh, animal cages, bird netting, Agriculture,Residential,Sports, stairway and Fall Security, Etc.

Customizable 2.5mm Wire Balustrade Cable Mesh Rope Netting For Staircase Fence 3

5. Advantage:

1.The netting is clipped to the cable,
2. The mesh size and diameter can be modified
3. It can be made to customer orders and statically tested – especially suitable for facades
4. High strength, strong toughness, free-angles curving and fold, easy for transportation and installment.
5. Anti-corrosive, resist the rust, can be repeated use.
6. Resists chewing by rodents and other pests (tensile strength approximately 100-110,000 PSI)
7.This product can bear the heavy snow and the gale very much.
8. without toxic material, safety, environmental protection.

 Customizable 2.5mm Wire Balustrade Cable Mesh Rope Netting For Staircase Fence 4

6. Accessory:

Customizable 2.5mm Wire Balustrade Cable Mesh Rope Netting For Staircase Fence 5

7. Packing and Delivery:
Packing: Paper carton, wooden case
Delivery: by FedEx, DHL, UPS, TNT EMS, by air, Door-to Door or by sea.
Customizable 2.5mm Wire Balustrade Cable Mesh Rope Netting For Staircase Fence 6



8. Company:



Anping Yuntong Metal Wire Mesh Co., Ltd. is an exporter and manufacturer of series wire mesh and industrial wire. Located in the native land of wire mesh in China. Our company's main products: various materials, fencing wire mesh, zoo mesh, rope mesh, aviary mesh,metal curtain,aluminum decorative mesh. Our products with complete specifications and sophisticated quality are mainly exported to the United States, Germany, South Korea, Belgium, and some Southeast Asian countries and regions. We have established long-term and friendly relationships with suppliers, and got trust from users at home and abroad.

Yuntong aims to become one of the first-class companies integrating scientific research, production and management together. Our goods are high in quality at favorable prices. We produce and supply metal wire mesh according to ISO9001 Quality Standards. 90% of our products are for export and sell well in the USA, Germany, Japan, Canada, South Korea, and other countries and regions.

Customizable 2.5mm Wire Balustrade Cable Mesh Rope Netting For Staircase Fence 7 Customizable 2.5mm Wire Balustrade Cable Mesh Rope Netting For Staircase Fence 8

Customizable 2.5mm Wire Balustrade Cable Mesh Rope Netting For Staircase Fence 9



9. Factory :



Customizable 2.5mm Wire Balustrade Cable Mesh Rope Netting For Staircase Fence 10
