| Place of Origin: | Hebei,China |
|---|---|
| Brand Name: | Yuntong |
| Certification: | CE , SGS |
| Model Number: | YT-1650 |
| Minimum Order Quantity: | 10 Sqm |
| Packaging Details: | Package film for each piece,Several pieces packed in 1 carton |
| Delivery Time: | 5-8 Work Days |
| Payment Terms: | T/T, Western Union,PayPal |
| Supply Ability: | 300Sqm/Week |
| Product Name: | 316L Ss Wire Rope Mesh Zoo Bird Animal Safety Protect Mesh | Mesh Type: | Ferruled Or Knotted Rope Mesh |
|---|---|---|---|
| Application: | Aviary Netting , Bird Cage , Zoo Mesh | Mesh Eye Size: | Range From 20 Mm To 50 Mm Or Bigger |
| Cable Thickness: | From 1.2 Mm To 2.5 Mm | Advantage: | Soft , X-tend, Flexible |
| Material: | Ss316L | ||
| High Light: | Zoo Bird Animal Safety Protect Mesh,316L SS Wire Rope Mesh,Soft Aviary Wire Netting |
||

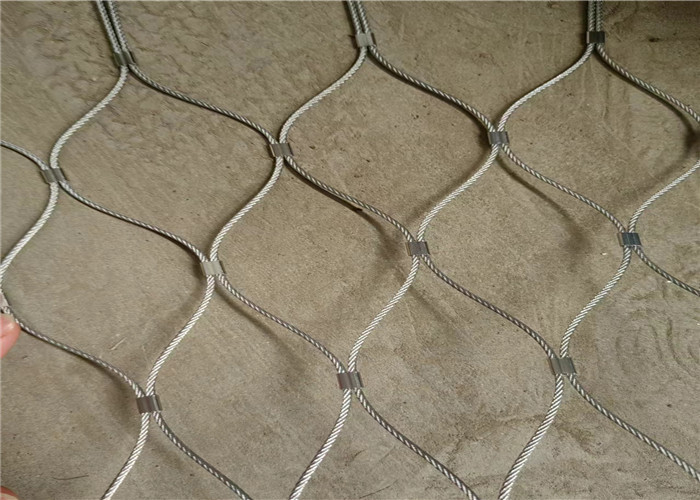

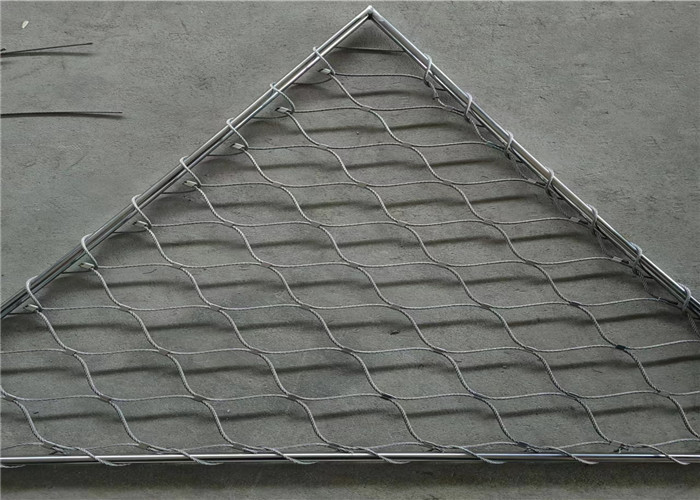

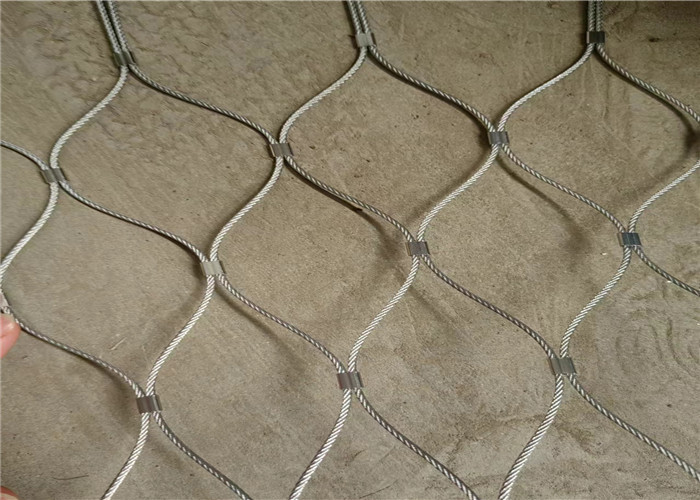

316L Ss Wire Rope Mesh Zoo Bird Animal Safety Protect Mesh
Wire Rope Mesh Zoo Bird AnimalSpecification :
| Wire Thickness | 1.2 mm to 3.2 mm |
| Mesh Hole Size | 25 x 43mm to 50 x 86 mm or bigger |
| Cable Structures | 7 x 7 , 7 x 19 |
Recommended Wire Rope Mesh Zoo Bird Animal Specification for Aviaries :
| Material | Cable Diameter | Hole Size | Normal Break |
| SS304/316/316L | 3/64" (1.2MM) | 1" x 1" | 270 LBS |
| SS304/316/316L | 1/16" (1.6MM) | 1" x 1" | 480 LBS |
| SS304/316/316L | 1/16" (1.6MM) | 1.2" x 1.2" | 480 LBS |
| SS304/316/316L | 5/64" (2.0MM) | 1.2" x 1.2" | 676 LBS |
| SS304/316/316L | 5/64" (2.0MM) | 1.5" x 1.5" | 676 LBS |
| SS304/316/316L | 5/64" (2.0MM) | 2.0" x 2.0" | 676 LBS |
1). knotted mesh is a kind of plain weave, each warp wire rope crosses alternately above and below each weft wire rope. Warp and weft wire ropes generally have the same diameter.
2). ferruled mesh is of the same physical properties with the knotted mesh, the only difference is in the combination style, the stainless wire rope are combined by the ferrules which are made of the same grade stainless steel.
