| Place of Origin: | China |
|---|---|
| Brand Name: | yuntong |
| Certification: | CE |
| Model Number: | 5 |
| Minimum Order Quantity: | 10 sqm |
| Price: | USD 10-25/sqm |
| Packaging Details: | wooden case |
| Supply Ability: | 8000 sqm/ week |
| Surface Treatment: | Polishing | Color: | Silver |
|---|---|---|---|

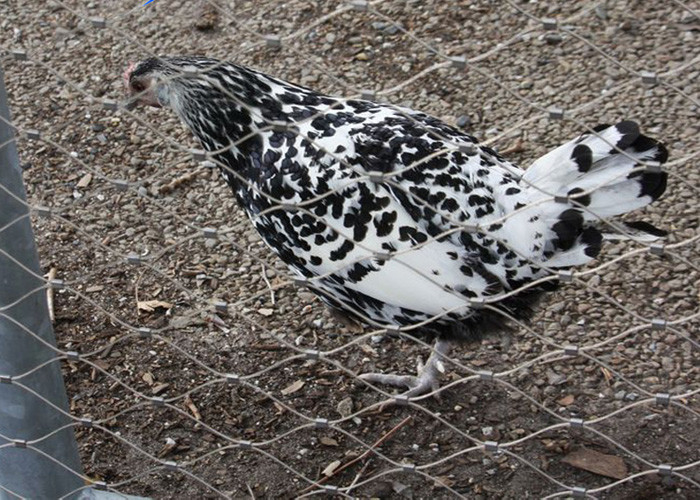

| Application: | Zoo, Aviary, Balcony,Fence, Surface Plant Climbing Net, Etc. | Material: | Stainless Steel |
| Wire Diameter: | 1.2mm-6.0mm | Aperture Size: | 20mm-300mm |
| Material: | SUS304 | Corrosion Resistance: | Excellent |
| High Light: | sus316 zoo knotted rope mesh,high strength zoo knotted rope mesh,ss zoo knotted rope mesh |
||

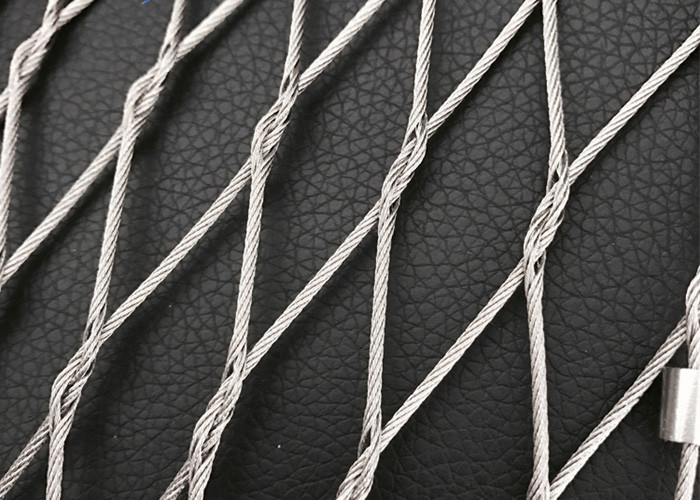

zoo mesh is an extremely strong containment netting suitable for smaller mammals, primates and large birds. Individual mesh knots are double fastened and the netting does not have to be installed under tension. The stainless steel zoo mesh is available in sizes from 25 x 25mm (1" x 1") to 125 x 125mm (5" x 5"). In wire from 1.2mm to 3.2mm (3/64" to 1/8") in stainless steel. The hand woven netting is manufactured in 7 x 7 type 304 stainless steel to your requirements.
zoo mesh Technical Parameters:
CableStructure:7x7 and 7x19
CableDiameter:1/8", 3/32", 1/16", and 3/64".
Mesh Size:1"x 1", 1-1/2"x1-1/2", 2"x2", 3"x3", and 4"x4"
| Flexible Stainless Steel Wire Rope Mesh(Inter-woven Type) | |||||
| Item No.s | Cable Diameter |
Mesh Opening Size (W×H) |
Normal Break | ||
| inch | mm | inch | mm | ibs. | |
| YT-3212W | 1/8 | 3.2 | 4.75×4.75 | 120×120 | 1,600 |
| YT-3210W | 1/8 | 3.2 | 4×4 | 102×102 | 1,600 |
| YT-3290W | 1/8 | 3.2 | 3.55×3.55 | 90×90 | 1,600 |
| YT-3276W | 1/8 | 3.2 | 3×3 | 76×76 | 1,600 |
| YT-3250W | 1/8 | 3.2 | 2×2 | 51×51 | 1,600 |
| YT-2410W | 3/32 | 2.4 | 4×4 | 102×102 | 920 |
| YT-2490W | 3/32 | 2.4 | 3.55×3.55 | 90×90 | 920 |
| YT-2476W | 3/32 | 2.4 | 3×3 | 76×76 | 920 |
| YT-2460W | 3/32 | 2.4 | 2.4×2.4 | 60×60 | 920 |
| YT-2450W | 3/32 | 2.4 | 2×2 | 51×51 | 920 |
| YT-2076W | 5/64 | 2.0 | 3×3 | 76×76 | 676 |
| YT-2060W | 5/64 | 2.0 | 2.4×2.4 | 60×60 | 676 |
| YT-2050W | 5/64 | 2.0 | 2 | 51×51 | 676 |
| YT-2038W | 5/64 | 2.0 | 1-1/2×1-1/2 | 38×38 | 676 |
| YT-1676W | 1/16 | 1.6 | 3×3 | 76×76 | 480 |
| YT-1650W | 1/16 | 1.6 | 2×2 | 51×51 | 480 |
| YT-1638W | 1/16 | 1.6 | 1-1/2×1-1/2 | 38×38 | 480 |
| YT-1630W | 1/16 | 1.6 | 1.2×1.2 | 30×30 | 480 |
| YT-1625W | 1/16 | 1.6 | 1×1 | 25.4×25.4 | 480 |
| YT-1238W | 3/64 | 1.2 | 1-1/2×1-1/2 | 38×38 | 270 |
| YT-1230W | 3/64 | 1.2 | 1.2×1.2 | 30×30 | 270 |
| YT-1225W | 3/64 | 1.2 | 1×1 | 25.4×25.4 | 270 |
| YT-1220W | 3/64 | 1.2 | 4/5×4/5 | 20×20 | 270 |
Yuntong Wire Rope Mesh is a strong and durable mesh made from stainless steel. It comes in a variety of sizes, ranging from 1m x 30m or customized. It is available in silver color, with a weight that ranges from 0.35-2 Kg/ Sqm. This type of mesh has a twisted weave type, making it ideal for a variety of applications.
Packing: Paper carton, wooden case
Delivery: by FedEx, DHL, UPS, TNT EMS, by air, Door-to Door or by sea.
