| Place of Origin: | Hebei |
|---|---|
| Brand Name: | Yuntong |
| Certification: | CE , SGS |
| Model Number: | YT--K-2050 |
| Minimum Order Quantity: | 10 Sqm |
| Packaging Details: | Carton Box , Wooden Case |
| Delivery Time: | 5-8 Work Days |
| Payment Terms: | T/T, Western Union,PayPal |
| Supply Ability: | 300Sqm/Week |
| Rope Constructions: | 7 X 7 , 7 X 19 | Material: | Stainless Steel 304 , 316 , 316L |
|---|---|---|---|
| Mesh Shape: | Rhombus , Diamond | Application: | Animal Enclosure , Aviary Netting |
| Wire Rope: | 1.5mm To 3.2 Mm | Mesh Angle: | 60 Degree |
| Mesh Style: | Knotted | ||
| High Light: | sus316 stainless steel knotted rope mesh,antirust stainless steel knotted rope mesh,parrot enclosure zoo knotted rope mesh |
||

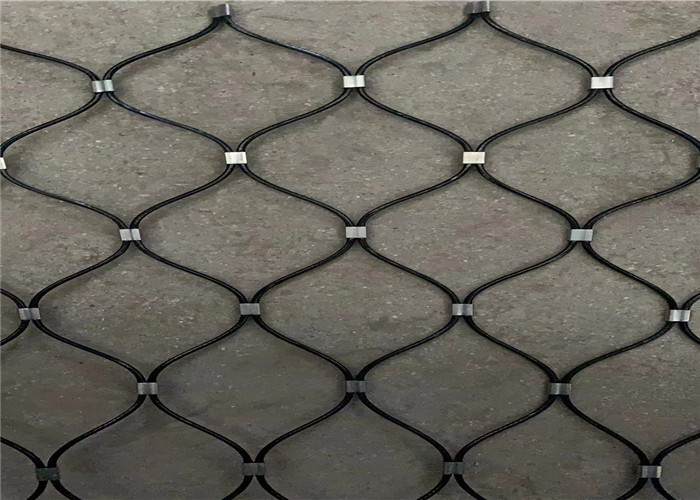

Resist The Rust Zoo Wire Mesh For Parrot Enclosure Mesh
zoo wire mesh has two types of flexible wire rope meshes in construction: ferrule type and knotted.

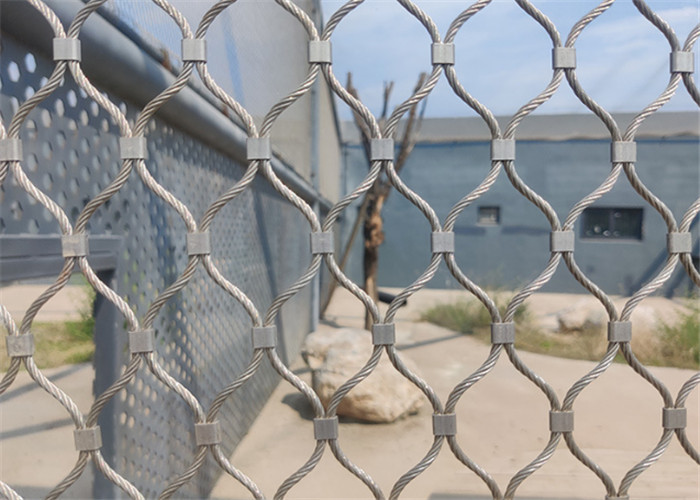

zoo wire mesh is light, robust and transparent, and it can stand up to heavy loads, and now it has been widely used as balustrade infill system, zoo enclosures, tensile facade, safety netting and green wall systems.
| Wire Rope Diameter | |||||||
| Flexible HeslyCable ferruled stainless steel cable mesh netting is made from stainless steel wire ropes.Extremely flexible,High strength, Corrosion resistant.Available AISI 316,AISI 304 | |||||||
| Structure | 1.2 mm | 1.5 mm | 2.0 mm | 3.0mm | 4.0 mm |
|
|
| Structure | 7 x 7 | 7 x 7 | 7 x 7 | 7 x 19 | 7 x 19 | ||
| Single Wire TS (N/mm2) | 1770 | 1770 | 1770 | 1570 | 1570 | ||
| Opening Size ( OW X OH ) | |||||||
| The mesh width ,OW ,refers to the distance from the middle of one ferrule to the next ferrule along the cable ,net geometry is optimised, when the resulting diamond can be divided into two equilateral triangles with 60 ° corners. | |||||||
| Opening Size | Rope Diameter | Mesh Structure | |||||
| OW X OH | 1.2 mm | 1.5 mm | 2.0 mm | 3.0 mm | 4.0 mm | ||
| 20 x 35 | CD1020 |  |
|||||
| 25 x 43 | CD1025 | CD1525 | |||||
| 35 x 61 | CD1035 | CD1535 | |||||
| 40 x 69 | CD1040 | CD1540 | CD2040 | ||||
| 50 x 87 | CD1050 | CD1550 | CD2050 | CD3050 | |||
| 60 x 104 | CD1060 | CD1560 | CD2060 | CD3060 | CD4060 | ||
| 70 x 121 | CD1070 | CD1570 | CD2070 | CD3070 | CD4070 | ||
| 80 x 139 | CD1080 | CD1580 | CD2080 | CD3080 | CD4080 | DecorRope | |
| 100 x 173 | CD10100 | CD15100 | CD20100 | CD30100 | CD40100 | OW : Opening Width | |
| 120 x 242 | CD10120 | CD15120 | CD20120 | CD30120 | CD40120 | OH : Opening Height | |
| 160 x 277 | CD10160 | CD15160 | CD20160 | CD30160 | CD40160 | OG : Opening Guage | |
| 180 x 312 | CD10180 | CD15180 | CD20180 | CD30180 | CD40180 | α : 60° standard (Angle: 30° - 90°) | |
| 200 x 346 | CD10200 | CD15200 | CD20200 | CD30200 | CD40200 | ||
|
Mesh Aperture : |
|
|
|
|
|
