| Place of Origin: | China |
|---|---|
| Brand Name: | yuntong |
| Certification: | CE |
| Model Number: | 5 |
| Minimum Order Quantity: | 10 sqm |
| Price: | USD 10-25/sqm |
| Packaging Details: | wooden case |
| Supply Ability: | 8000sqm/week |
| Corrosion Resistance: | Excellent | Wire Diameter: | 1.2mm-6.0mm |
|---|---|---|---|
| Installation: | Easy | Flexibility: | Good |
| Color: | Silver | Surface Treatment: | Polishing |
| Material: | Stainless Steel | Durability: | High |
| High Light: | balcony ferrule cable mesh,anti corrosive ferrule cable mesh,anti rust stainless steel ferrule mesh |
||

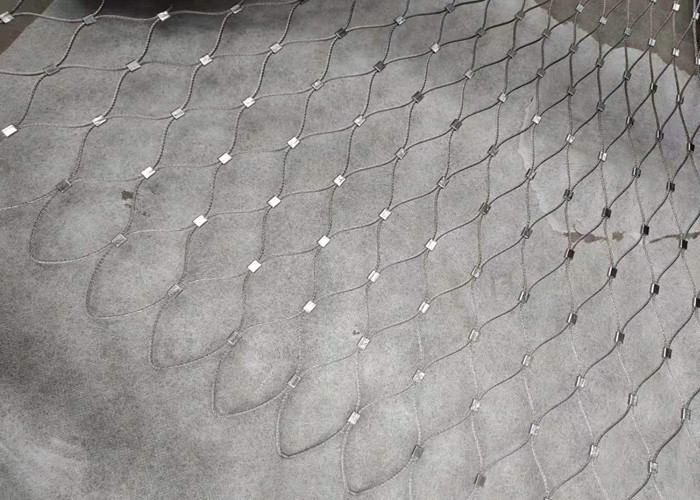

The flexible Stainless Steel Diamond Rope Mesh For Building Construction ferrule type is rhombus mesh, has excellent flexible performance, virtually indestructible, most impacting-resistant and breaking resistant force, most resisting rain, snow, hurricane. As the material is virtually indestructible stainless steel, then it can be safely contain any species on land, in the air indoors or out. And the weave opening, we can infinitely customized to meet your exhibits exact specifications. No matter how large, how small, or how cunning you specimens are, we assure their complete security
Technical Parameters:
Material: SUS 304 SUS 316
Wire diameter: 1.2mm 1.5mm 2.0mm 2.5mm 3.0mm 3.2mm 4.0mm 5.0mm 6.0mm 10mm etc.
Mesh aperture: 25*25mm 30*30mm 35*35mm 40*40mm 50*50mm 60*60mm 80*80mm 100*100mm 150*150mm 200mm*200mm 300*300mm or customized etc.
Height: general 0.5-30meter
Length: general 0.5-30mete
|
Anping Yuntong Metal Wire Mesh Co.,Ltd Flexible Stainless Steel Cable Mesh(Ferrule Type) |
||||||
| Mesh Aperture | Wire diameter | |||||
| OW X OH (mm) | Inch | 1.2 mm | 1.5 mm | 2.0 mm | 3.0 mm | 4.0 mm |
| 3/64" | 1/16" | 5/64" | 1/8" | 0.157" | ||
| 20 x 35 | 4/5×1.39 | YT1220 | ||||
| 25.4 x 44 | 1×1.73 | YT1225 | YT1525 | |||
| 35 x 61 | 1.37×24 | YT1235 | YT1535 | YT2035 | ||
| 38 x 65.8 | 1-1/2×2.6 | YT1235 | YT1538 | YT2038 | YT3038 | |
| 51 x 88.3 | 2×3.46 | YT1251 | YT1551 | YT2051 | YT3051 | YT4051 |
| 60 x 105 | 2.4×4.16 | YT1260 | YT1560 | YT2060 | YT3060 | YT4060 |
| 76 x 131.6 | 3×5.2 | YT1276 | YT1576 | YT2076 | YT3076 | YT4076 |
| 90 x 156 | 3.5×6.15 | YT1290 | YT1576 | YT2090 | YT3090 | YT4090 |
| 102 x 176.7 | 4×6.9 | YT20100 | YT15100 | YT20100 | YT30100 | YT40100 |
| 120 x 210 | 4.75×8.23 | YT12120 | YT15120 | YT20120 | YT30120 | YT40120 |
| 160 x 280 | 6.3 x 11 | YT12160 | YT15160 | YT20160 | YT30160 | YT40160 |
| 180 x 315 | 7.08 x 12.4 | YT12180 | YT15180 | YT20180 | YT30180 | YT40180 |
| 200 x 350 | 7.87 x 13.78 | YT12200 | YT15200 | YT20200 | YT30200 | YT40200 |
| 250 x 450 | 9.84 x 17.7 | YT12250 | YT15250 | YT20250 | YT30250 | YT40250 |
| 300 x 525 | 11.8 x 20.67 | YT12300 | YT15300 | YT20300 | YT30300 | YT40300 |
Applications:
Packing: Paper carton, wooden case
Delivery: by FedEx, DHL, UPS, TNT EMS, by air, Door-to Door or by sea.
