4.0mm AISI 304 316 Rhombus X Tend Cable Mesh

Basic Information
Place of Origin: Hebei,China
Brand Name: Yuntong
Certification: CE , SGS
Model Number: YT--F-2075
Minimum Order Quantity: 10 Sqm
Packaging Details: Package film for each piece,Several pieces packed in 1 carton for the green wall climbing mesh
Delivery Time: 5-8 Work Days
Payment Terms: T/T, Western Union,PayPal, L/C
Supply Ability: 300Sqm/Week
Material: Stainless Steel 304 , 316 , 316L Wire Thickness: 1.5mm To 4.0mm
Rope Constructions: 7 X 7 Mesh Eye Size: 50mm To 200 Mm Or Bigger
Mesh Shape: Rhombus , Diamond Application: Green Wall , Plant Trellis ,Climbing Net
Mesh Angle: 60 Degree Mesh Style: X-tend In Ferruled Type
Shipment: By Air Or By Express
High Light:

4.0mm x tend cable mesh

,

AISI x tend cable mesh

,

Rhombus x tend cable mesh

Architectural Cable Rope Stainless Steel Wire Mesh

4.0mm AISI 304 316 Rhombus X Tend Cable Mesh 0

Item Cable diameter mesh opening Application
YT-SS200/2 2.0mm 200*200mm Architecture outdoor mesh
YT-SS40/02 2.0mm 40*40mm Playground mesh,stadium protection mesh
YT-SS50/02 2.0mm 50*50mm Playground mesh,decorative indoor mesh
YT-SS60/02 2.0mm 60*60mm Architecture outdoor mesh,Playground mesh
YT-SS80/02 2.0mm 80*80mm decorative indoor mesh,Aviary mesh
YT-SS100/02 2.0mm 100*100mm airport protection mesh
YT-SS12002 2.0mm 120*120mm suspended ceiling mesh
YT-SS140/02 2.0mm 140*140mm overhead coverage mesh
YT-SS60/1.5 1.5mm 60*60mm Playground mesh,Stairs Fence
YT-SS40/1.5 1.5mm 40*40mm

Playground mesh,aviary mesh,

Stairs Fence,Architecture mesh,

Animal enclosure

YT-SS100/1.5 1.5mm 100*100mm

Architecture outdoor mesh,

Pool protective net,Stairs Net

YT-SS50/1.5 1.5mm 50*50mm Stairs Fence
YT-SS30/1.5 1.5mm 30*30mm shading canopy mesh,Tower Protection Net
YT-SS25/1.5 1.5mm 25*25mm Aviary mesh
YT-SS20/01 1.0mm 20*20mm Aviary mesh
YT-SS30/01 1.0mm 30*30mm Aviary mesh
YT-SS40/01 1.0mm 40*40mm Playground mesh,protection mesh
YT-SS50/2.5 2.5mm 50*50mm Animal enclosure
YT-SS100/03 3.0mm 100*100mm safety net,overhead coverage mesh
YT-SS40/03 3.0mm 40*40mm Playground mesh
YT-SS50/03 3.0mm 50*50mm barrier mesh,decorative indoor mesh
YT-SS80/03 3.0mm 80*80mm Bridge safety net



SS304 (%) C:≤0.07, Si :≤1.0, Mn :≤2.0, Cr :17.0-19.0, Ni :8.0-11.0, S :≤0.03, P :≤0.035
SS316 (%) C:≤0.08, Si:≤1.00, Mn:≤2.00, P≤:0.035, S:≤0.03, Ni:10.0-14.0, Cr:16.0-18.5
SS316L (%)C:≤0.03, Si:≤1.00, Mn:≤2.00, P:≤0.045, S:≤0.030, Cr:16.0~18.0, Ni:12.0~15.0


Features Of Stainless Steel Wire Rope Mesh ​:
Wire Rope Mesh is a construction of corrosion-resistant steel ropes placed parallel to one another in pairs connected by alternating sleeves to produce a symmetrical bent pattern. The nets are fabricated application-specifically according to your customer specifications. This means there are no limits to the shape and size. The mesh orientation of Webnet can be selected as desired, yet it is typically arranged vertically or horizontally for geometric shapes.



Mesh Aperture :
● Mesh aperture is the mesh hole size, is the distance from knot center to knot center.
● Stainless steel wire mesh is pure hand-woven, so it also be called as hand woven stainless steel wire rope mesh or stainless steel rope braid mesh. Every knotting crossing twice by hand, ensure the hole never variant.
● Hand woven stainless steel netting hole size is diverse
● We accept custom mesh size, whether so large, so small, our steel cable mesh can be very suit your design,

Mesh Orientation & Finished

4.0mm AISI 304 316 Rhombus X Tend Cable Mesh 1

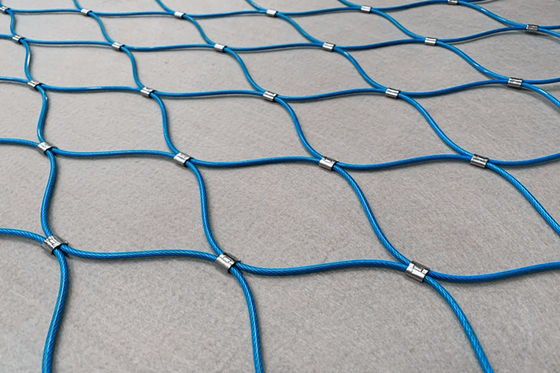

Webnet with Ferrules ( Ferruled Type )

The Webnet standard version with sleeves is a classic. It is versatile, flexible and economical, especially with small rope diameters. Webnet micro is the designation for nets with optimised sleeves and is presently used in net variants with rope diameters of 1.5 mm. The sleeves are produced using a new manufacturing process and require less material for the same strength – an advantage for you in price and aesthetics.

4.0mm AISI 304 316 Rhombus X Tend Cable Mesh 2

Webnet without Sleeves ( Knotted Type )

Webnet without sleeves is even more transparent than the version with sleeves while delivering practically identical strength values. Moreover, there are no troublesome light reflections from the sleeves.
Consequently, sleeveless Webnet is ideally suited for strong and unobtrusive protective nets as well as for animal enclosures in zoo applications because it is easier to see through it when viewing the animals.

4.0mm AISI 304 316 Rhombus X Tend Cable Mesh 3

8 Advantages of Stainless Steel  Cable Wire Mesh

1.It’s malleable and flexible

Cable wire mesh has a fabric-like structure which makes it very useful for ‘wrapping’ around unusually shaped structures and shapes. Examples of this include being used to provide safety in car parks, at sports grounds and in children’s playgrounds.

2.A durable, low maintenance material

cable wire mesh is extremely durable and strong, made from marine grade 316 stainless steel, cable is suitable for projects that require longevity. Also, cable requires little to no maintenance after installation.

3.Provides fall protection

cable wire mesh can be used to create fall protection for a variety of applications, including on bridges, car parks, balconies and elevated walkways.

4.Useful in green façades

Façade greening can be created using cable, creating a robust structure for plants to grow up – providing aesthetic and ecological benefits.

5.Handles heavy loads

The ability to handle large loads is an advantage of cable, as it makes it suitable for fall protection and is able to cope with the weight of plants on large scale green walls.

6.Provides wall replacements

Defining separate spaces can be achieved with cable as it is able to act as a wall, proving to be particularly useful in small spaces to separate areas whilst still allowing for a flow of light.

7.Can create animal enclosures

Animal enclosures can be fabricated using cable wire mesh systems, creating enclosures that allow animals to roam freely. cable comes in various apertures and sizes to suit the application.

8.Light, attractive design

The light, filigree design of cable provides safety without having a negative impact on the design of a structure and without blocking the flow of light.

Applications :

In combination with architectural ropes Webnet is used in a wide variety of ways: railing infill, protective nets, safety nets, barricades, fences, zoo enclosures, aviaries, suicide prevention, façade greening, artwork, ball nets, stair wells, skylight protection, fall-stop nets, bridge protection, machine protection, etc.

4.0mm AISI 304 316 Rhombus X Tend Cable Mesh 4
