Material: | SS 304 SS 316 | Wire Diameter: | 1.5mm |
---|---|---|---|
Mesh Aperture: | 30*30 Mm | Measure: | Customized |
Application: | Protective, Fall Prevention | Characteristic: | Anti-corrosion Non-rusting Anti Acid And Alkali |
High Light: | 1.5mm stainless steel zoo mesh,30*30mm stainless steel zoo mesh,sus316 Zoo Mesh |
Protect bird feathers and animal skins, prevent rodents and other animals from biting, and provide animals with a safe
Stainless steel wire rope wove mesh is a kind of plain weave, each warp wire rope crosses alternately above and below each weft wire rope. Warp and weft wire ropes generally have the same diameter.
Material | ss304 ss304L ss316 ss316L |
Wire Diameter | 1.2mm 1.5mm 2.0mm 2.5mm 3.0mm 3.2mm 4.0mm 5.0mm 6.0mm |
Mesh Aperture |
25*25mm,30*30mm,35*35mm,40*40mm,50*50mm,60*60mm or customized according customer’s requirements |
Measure | Height: 0.5-50meter Length: 0.5-50meter It can be customized |
Mesh type |
woven |
Cable structure | 7*7 or 7*19 |

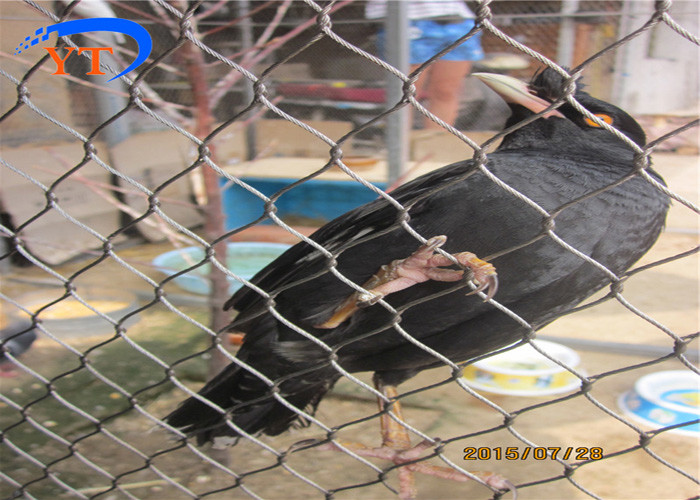

Stainless steel wire rope wove mesh,in particular, is usually used in animal or bird cages, which is also called zoo mesh.The mesh has strong tensile strength and high flexibility,high transparence and wide span. The flexible s.s. cable mesh has unreplacable advantages compared with other mesh products in many aspects like practicability, security, aesthetic property and durability etc.
Stainless Steel Wire Rope Mesh(Woven Type) | |||||
Item No.s | Cable Diameter | Mesh Opening Size (W×H) |
Normal Break
|
||
inch | mm | inch | mm | ibs. | |
YT-3212W | 1/8 | 3.2 | 4.75×4.75 | 120×120 | 1,600 |
YT-3210W | 1/8 | 3.2 | 4×4 | 102×102 | 1,600 |
YT-3290W | 1/8 | 3.2 | 3.55×3.55 | 90×90 | 1,600 |
YT-3250W | 1/8 | 3.2 | 2×2 | 51×51 | 1,600 |
YT-2510W | 3/32 | 2.4 | 4×4 | 102×102 | 920 |
YT-2490W | 3/32 | 2.4 | 3.55×3.55 | 90×90 | 920 |
YT-2560W | 3/32 | 2.4 | 2.4×2.4 | 60×60 | 920 |
YT-2550W | 3/32 | 2.4 | 2×2 | 51×51 | 920 |
YT-2060W | 5/64 | 2.0 | 2.4×2.4 | 60×60 | 676 |
YT-2050W | 5/64 | 2.0 | 2 | 51×51 | 676 |
YT-1680W | 1/16 | 1.6 | 3.15 | 80*80 | 480 |
YT-1650W | 1/16 | 1.6 | 2×2 | 51×51 | 480 |
YT-1630W | 1/16 | 1.6 | 1.2×1.2 | 30×30 | 480 |
YT-1625W | 1/16 | 1.6 | 1×1 | 25.4×25.4 | 480 |
2 . Packing and Delivery:
Delivery: by FedEx, DHL, UPS, TNT EMS, by air, Door-to Door or by sea.
3. Application: It is widely used in: Animal Enclosure mesh, animal cages, bird netting, Agriculture,Residential,Sports, stairway and Fall Security, Etc.
4. Stainless Steel Cable Mesh advantages:
1.The netting is clipped to the cable, |
2. The mesh size and diameter can be modified |
3. It can be made to customer orders and statically tested – especially suitable for facades |
4. High strength, strong toughness, free-angles curving and fold, easy for transportation and installment. |
5. Anti-corrosive, resist the rust, can be repeated use. |
6. Resists chewing by rodents and other pests (tensile strength approximately 100-110,000 PSI) |
7.This product can bear the heavy snow and the gale very much. |
8. without toxic material, safety, environmental protection. |
