Stainless Steel Wire Rope Net / X Tend Cable Mesh 1.2MM To 3.2 MM

Stainless Steel Wire Rope Net / X Tend Cable Mesh 1.2MM To 3.2 MM

    • Stainless Steel Wire Rope Net / X Tend Cable Mesh 1.2MM To 3.2 MM
    • Stainless Steel Wire Rope Net / X Tend Cable Mesh 1.2MM To 3.2 MM
  • Stainless Steel Wire Rope Net / X Tend Cable Mesh 1.2MM To 3.2 MM

    Product Details:

    Place of Origin: Hebei
    Brand Name: Yuntong
    Certification: CE , SGS
    Model Number: YT-CM

    Payment & Shipping Terms:

    Minimum Order Quantity: 10 Sqm
    Packaging Details: Carton Box or Wooden Case
    Delivery Time: 5-8 Work Days
    Payment Terms: T/T, Western Union,PayPal
    Supply Ability: 300Sqm/Week
    Contact Now
    Detailed Product Description
    Material: High Grade AISI316 Wire Rope: 1.2 Mm To 4.0 Mm
    Rope Constructions: 7 X 7 , 7 X 19 Mesh Type: Ferruled
    Finished: Ultrasonic Bath , Black Oxide Mesh Orientation: Horizontal , Vertical
    Product Name: X-tend Cable Webnet Mesh Fence Panel Sheet: Customized In Width And Length

    Stainless Steel Wire Rope Material 1.2MM To 3.2 MM Wire Rope Net



    Wire Rope Net Specifications Sheet :


    Hole Size

    (Opening)

    1.2MM(3/64)

    (7 x 7 )

    1.6MM(1/16)

    (7 x 7 )

    2.0MM(5/64)

    (7 x 7 )

    2.4MM(3/32)

    (7 x 7 )

    3.2MM(1/8)

    (7 x 19 )

    20 x 35mm YT-1235
    25 x 42mm YT-1225 YT-1625
    30 x 52mm YT-1230 YT-1630 YT-2030
    35 x 60mm YT-1235 YT-1635 YT-2035
    38 x 66mm YT-1238 YT-1638 YT-2038 YT-2438
    40 x 69mm YT-1240 YT-1640 YT-2040 YT-2440 YT-3040
    50 x 86mm YT-1250 YT-1650 YT-2050 YT-2450 YT-3050
    60 x 104mm YT-1260 YT-1660 YT-2060 YT-2460 YT-3060
    70 x 120mm YT-1270 YT-1670 YT-2070 YT-2470 YT-3070
    76 x 131mm YT-1276 YT-1676 YT-2076 YT-2476 YT-3076
    80 x 138mm YT-1280 YT-1680 YT-2080 YT-2480 YT-3080
    90 x 154mm YT-1290 YT-1690 YT-2090 YT-2490 YT-3090
    100 x 173mm YT-12100 YT-16100 YT-20100 YT-24100 YT-30100
    120 x 206mm YT-12120 YT-16120 YT-20120 YT-24120 YT-30120

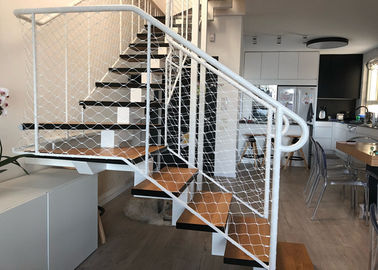

    Manufactured from 316 'marine grade' stainless steel, the Webnet mesh system can be specified for any balustrade requiring a contemporary infill.



    Wire Rope Net is custom manufactured to in widths and lengths to suit your balustrade, railing or architectural application. Diagonal and irregular shapes can also be supplied.


    Mesh sizes range from 25mm x 25mm to 250mm x 250mm with stainless cable diameters from 1.2mm to 3.2mm.



    Mesh can be applied in either a vertical or horizontal direction, again dependent on the balustrade or railing design and the required aesthetics.



    Finished diamond mesh style when it is stretched at 60 degree angle ;



    RFQ Of Stainless Steel Wire Rope Net :



    1. Advantage of Wire Rope Net

    Unique design. 3D-structure, Flexible, Light weight, . Corrosion resistant, Maintenaance free. 10 years rust guaranteed.

    2. 304 or 316 stainless steel?

    - Generally the 304 stainless steel is cheaper than 316 stainless steel, to flexible wire rope mesh, the main cost is process cost, so the cost of mesh between 304 and 316 almost same. we suggest to choose 316 stainless steel.

    3. What is the different with cable and opening ?

    - The heavier cable or smaller opening, the cost more expensive.

    4. Is it safety ?

    - Full mesh meet test under EN1263.1.2014

    5. How to install the mesh !

    - Full of our piece is manufactured with special edge design. install by yourself easily.



    Advantage :

    1. The netting is clipped to the cable,

    2. The mesh size and diameter can be modified

    3. It can be made to customer orders and statically tested – especially suitable for facades

    4. High strength, strong toughness, free-angles curving and fold, easy for transportation and Installment.

    5. Anti-corrosive, resist the rust, can be repeated use.

    6. Resists chewing by rodents and other pests (tensile strength approximately 100-110,000 PSI)

    7. This product can bear the heavy snow and the gale very much.

    8. without toxic material, safety, environmental protection.

    9. Lightweight, high-strength, never rust, softness,

    10. fatigue resistance, impact resistance, breaking force, the overall structure of the rugged life of more than 30 years;
