SS Black Oxide Wire Rope Mesh X Tend Safety Cable High Strength Fencing

Basic Information
Place of Origin: Hebei,China
Brand Name: Yuntong
Certification: CE , SGS
Model Number: YT-S-1568
Minimum Order Quantity: 10 square meters
Packaging Details: Package water-proof plastic film and wooden case
Delivery Time: About 8-10 Work Days
Payment Terms: T/T, Western Union,PayPal, L/C
Supply Ability: 400 Square meters per week
Product Name: Stainless Steel Ferrule Type Rope Mesh For Balustrade Cable Thickness: 1.5mm, 1.6mm Is Popular
Mesh Eye Size: 30x30 To 100x100mm Or Bigger Mesh Type: Ferrule
Shippment: Express, Air Or Sea Surface Treatment: Black Oxide Polished
Mesh Angle: 60 Degree
High Light:

balustrade safety netting

,

stainless steel cable mesh

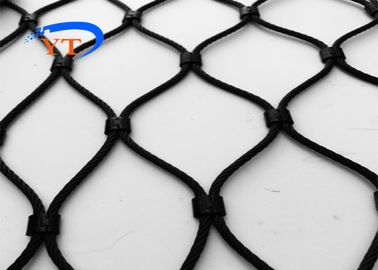

Black Oxide Stainless Steel Wire Rope Mesh Net X-tend Cable Mesh





The flexible stainless steel cable mesh ferrule type is rhombus mesh, has excellent flexible performance, virtually indestructible, most impacting-resistant and breaking resistant force, most resisting rain, snow, hurricane. As the material is virtually indestructible stainless steel, then it can be safely contain any species on land, in the air indoors or out. And the weave opening,we can infinitely customizable to meet your exhibits exact specifications. No matter how large, how small, or how cunning you specimens are, we assure their complete security.



Stainless Steel Cable Mesh Description:


Wire Rope Mesh Constructure

Rope Mesh Thickness

(inch)

Mesh Opening

(mm)

Min.Breaking Load(KN)

7x19 1/8'' 120x208 7.38
7x19 1/8'' 100x173 7.38
7x19 1/8'' 90x156 7.38
7x7 3/32'' 100x173 4.18
7x7 3/32'' 90x156 4.18
7x7 3/32'' 80x139 4.18
7x7 3/32'' 70x121 4.18
7x7 5/64'' 100x173 3.17
7x7 5/64'' 90x156 3.17
7x7 5/64'' 80x139 3.17
7x7 5/64'' 70x121 3.17
7x7 1/16'' 80x139 2.17
7x7 1/16'' 70x121 2.17
7x7 1/16'' 60x104 2.17
7x7 1/16'' 50x87 2.17
7x7 3/64'' 80x139 1.22
7x7 3/64'' 70x121 1.22
7x7 3/64'' 60x104 1.22
7x7 3/64'' 50x87 1.22



Stainless Steel Cable Mesh Advantage :


1. High strength, strong toughness, free angles curving and fold, easy for transportation and installment.
2. It can bear heavy snow and glae.
3. Without toxic material, safety, environmental protection.



Stainless Steel Cable Mesh Type:


1). Woven mesh is a kind of plain weave, each warp wire rope crosses alternately above and below each       weft wire rope. Warp and weft wire ropes generally have the same diameter.

2). Ferruled mesh is of the same physical properties with the knotted mesh, the only difference is in the

    combination style, the stainless wire rope are combined by the ferrules which are made of the same

    grade stainless steel.



SS Black Oxide Wire Rope Mesh X Tend Safety Cable High Strength Fencing 0
