High Strength Stainless Steel Cable Mesh Architectural Facade 60 Degree Mesh Angle

Basic Information
Place of Origin: Hebei
Brand Name: Yuntong
Certification: CE , SGS
Model Number: YT-B-O
Minimum Order Quantity: 10 Sqm
Packaging Details: Package film for each piece,Several pieces packed in 1 carton
Delivery Time: 5-8 Work Days
Payment Terms: T/T, Western Union,PayPal
Supply Ability: 300Sqm/Week
Material: High Grade AISI316 Wire Rope: 1.2 Mm To 4.0 Mm
Rope Constructions: 7 X 7 , 7 X 19 Mesh Type: Ferruled
Finished: Ultrasonic Bath , Black Oxide Product Name: X-Tend Cable Wire Mesh Net
Panel Size: Customized Mesh Angle: 60 Degree In Diamond
High Light:

woven rope mesh

,

stainless steel cable netting

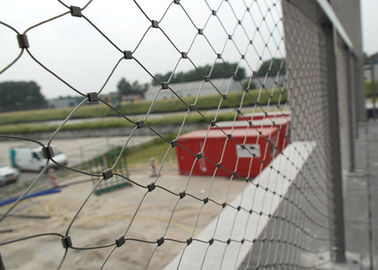

High Strength X-Tend Architectural Facade Stainless Steel Cable Mesh



X-tend Cable  Mesh Specifications Sheet :


Hole Size

(Opening)

1.2MM(3/64)

(7 x 7 )

1.6MM(1/16)

(7 x 7 )

2.0MM(5/64)

(7 x 7 )

2.4MM(3/32)

(7 x 7 )

3.2MM(1/8)

(7 x 19 )

20 x 35mm YT-1235
25 x 42mm YT-1225 YT-1625
30 x 52mm YT-1230 YT-1630 YT-2030
35 x 60mm YT-1235 YT-1635 YT-2035
38 x 66mm YT-1238 YT-1638 YT-2038 YT-2438
40 x 69mm YT-1240 YT-1640 YT-2040 YT-2440 YT-3040
50 x 86mm YT-1250 YT-1650 YT-2050 YT-2450 YT-3050
60 x 104mm YT-1260 YT-1660 YT-2060 YT-2460 YT-3060
70 x 120mm YT-1270 YT-1670 YT-2070 YT-2470 YT-3070
76 x 131mm YT-1276 YT-1676 YT-2076 YT-2476 YT-3076
80 x 138mm YT-1280 YT-1680 YT-2080 YT-2480 YT-3080
90 x 154mm YT-1290 YT-1690 YT-2090 YT-2490 YT-3090
100 x 173mm YT-12100 YT-16100 YT-20100 YT-24100 YT-30100
120 x 206mm YT-12120 YT-16120 YT-20120 YT-24120 YT-30120



1. Flexible stainless steel cable mesh material: 304,304L,306,306L


2. Flexible stainless steel cable mesh use:

Widely used in some complicated physical characteristic area



3. Flexible stainless steel cable mesh feature:

simple installation, easy repair, Never Corrosion , antifatigue , resistant to impact ,Tear breaking force, the fastness is eduring , beautiful shape , original way of expression



RFQ Of X-tend Cable Mesh :



1. Advantage of X-tend Cable Wire Mesh
Unique design. 3D-structure, Flexible, Light weight, High open area % . Corrosion resistant, Maintenaance free. 10 years rust guaranteed.

2. 304 or 316 stainless steel?
- Generally the 304 stainless steel is cheaper than 316 stainless steel, to flexible wire rope mesh, the main cost is process cost, so the cost of mesh between 304 and 316 almost same. we suggest to choose 316 stainless steel.

3. What is the different with cable and opening ?
- The heavier cable or smaller opening, the cost more expensive.

4. Is it safety ?
- Full mesh meet test under EN1263.1.2014

5. How to install the mesh !
- Full of our piece is manufactured with special edge design . install by yourself easily.

High Strength Stainless Steel Cable Mesh Architectural Facade 60 Degree Mesh Angle 0High Strength Stainless Steel Cable Mesh Architectural Facade 60 Degree Mesh Angle 1High Strength Stainless Steel Cable Mesh Architectural Facade 60 Degree Mesh Angle 2
