CE Sus 316 Wire Rope Mesh X Tend Flexible Stainless Steel

Basic Information
Place of Origin: China
Brand Name: YUNTONG
Certification: CE
Model Number: YT-F2050
Minimum Order Quantity: 5
Price: USD 5-25/m2
Packaging Details: wooden case
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 8000m2/week
Material: SUS 304 SUS 316 Wire Diameter: 1.2 Mm 1.5mm 2.0mm 2.5mm 3.0mm 4.0mm
Size Of Hole: 25*25mm-300*300mm Height: Customized
Length: Customized Characteristic: Anti-corrosion Non-rusting Anti Acid And Alkali
Application: Protective, Fall Prevention Weave Style: Plain Weave,Ferruled,knotted/ferrule,Woven Or Ferruled
High Light:

ce wire rope mesh

,

wire rope mesh sus 316

,

sus 316 stainless rope mesh

SUS 316 X Tend Wire Rope Mesh Flexible Stainless Steel Cable Mesh



1. Specification:



Material: SUS 304 SUS 316

Wire diameter: 1.2mm 1.5mm 2.0mm 2.5mm 3.0mm 3.2mm 4.0mm 5.0mm 6.0mm etc.

Mesh aperture: 25*25mm 30*30mm 35*35mm 40*40mm 50*50mm 60*60mm 80*80mm 100*100mm 150*150mm 200mm*200mm 300*300mm etc.

Height: general 0.5-30meter

Length: general 0.5-30mete





Flexible Stainless Steel Cable Mesh(Ferrule Type)
Item No.s Cable Diameter Mesh Opening Size
(W×H)
Normal Break
  inch mm inch mm ibs.
YT-3212F 1/8 3.2 4.75×8.23 120×207.8 1,600 CE Sus 316 Wire Rope Mesh X Tend Flexible Stainless Steel 0
YT-3210F 1/8 3.2 4×6.9 102×176.7 1,600 CE Sus 316 Wire Rope Mesh X Tend Flexible Stainless Steel 1
YT-3211F 1/8 3.2 3.5×6.15 90×156 1,600 CE Sus 316 Wire Rope Mesh X Tend Flexible Stainless Steel 2
YT-3212F 1/8 3.2 3×5.2 76×131.6 1,600 CE Sus 316 Wire Rope Mesh X Tend Flexible Stainless Steel 3
YT-3213F 1/8 3.2 2×3.46 51×88.3 1,600 CE Sus 316 Wire Rope Mesh X Tend Flexible Stainless Steel 4
YT-3214F 3/32 2.4 4×6.9 102×176.7 920 CE Sus 316 Wire Rope Mesh X Tend Flexible Stainless Steel 5
YT-3215F 3/32 2.4 3.55×6.15 90×156 920 CE Sus 316 Wire Rope Mesh X Tend Flexible Stainless Steel 6
YT-3216F 3/32 2.4 3×5.2 76×131.6 920 CE Sus 316 Wire Rope Mesh X Tend Flexible Stainless Steel 7
YT-3217F 3/32 2.4 2.4×4.16 60×104 920 CE Sus 316 Wire Rope Mesh X Tend Flexible Stainless Steel 8
YT-3218F 3/32 2.4 2×3.46 51×88.3 920 CE Sus 316 Wire Rope Mesh X Tend Flexible Stainless Steel 9
YT-3219F 5/64 2.0 3×5.2 76×131.6 676 CE Sus 316 Wire Rope Mesh X Tend Flexible Stainless Steel 10
YT-3220F 5/64 2.0 2.4×4.16 60×104 676 CE Sus 316 Wire Rope Mesh X Tend Flexible Stainless Steel 11
YT-3221F 5/64 2.0 2×3.46 51×88.3 676 CE Sus 316 Wire Rope Mesh X Tend Flexible Stainless Steel 12
YT-3222F 5/64 2.0 1-1/2×2.6 38×65.8 676 CE Sus 316 Wire Rope Mesh X Tend Flexible Stainless Steel 13
YT-3223F 1/16 1.6 1.2×2.08 76×131.6 480 CE Sus 316 Wire Rope Mesh X Tend Flexible Stainless Steel 14
YT-3224F 1/16 1.6 2×3.46 51×88.3 480 CE Sus 316 Wire Rope Mesh X Tend Flexible Stainless Steel 15
YT-3225F 1/16 1.6 1-1/2×2.6 38×65.8 480 CE Sus 316 Wire Rope Mesh X Tend Flexible Stainless Steel 16
YT-3226F 1/16 1.6 1.2×2.08 30×52 480 CE Sus 316 Wire Rope Mesh X Tend Flexible Stainless Steel 17
YT-3227F 1/16 1.6 1×1.73 25.4×44 480 CE Sus 316 Wire Rope Mesh X Tend Flexible Stainless Steel 18
YT-3228F 3/64 1.2 1-1/2×2.6 38×65.8 270 CE Sus 316 Wire Rope Mesh X Tend Flexible Stainless Steel 19
YT-3229F 3/64 1.2 1.2×2.08 30×52 270 CE Sus 316 Wire Rope Mesh X Tend Flexible Stainless Steel 20
YT-3230F 3/64 1.2 1×1.73 25.4×44 270 CE Sus 316 Wire Rope Mesh X Tend Flexible Stainless Steel 21
YT-3231F 3/64 1.2 4/5×1.39 20×34.6 270 CE Sus 316 Wire Rope Mesh X Tend Flexible Stainless Steel 22


CE Sus 316 Wire Rope Mesh X Tend Flexible Stainless Steel 23

CE Sus 316 Wire Rope Mesh X Tend Flexible Stainless Steel 24

2. Advantage:

1.The netting is clipped to the cable,

2. The mesh size and diameter can be modified

3. It can be made to customer orders and statically tested – especially suitable for facades

4. High strength, strong toughness, free-angles curving and fold, easy for transportation and
installment.
5. Anti-corrosive, resist the rust, can be repeated use.
6. Resists chewing by rodents and other pests (tensile strength approximately 100-110,000 PSI)
7.This product can bear the heavy snow and the gale very much.
8. without toxic material, safety, environmental protection.

CE Sus 316 Wire Rope Mesh X Tend Flexible Stainless Steel 25

CE Sus 316 Wire Rope Mesh X Tend Flexible Stainless Steel 26

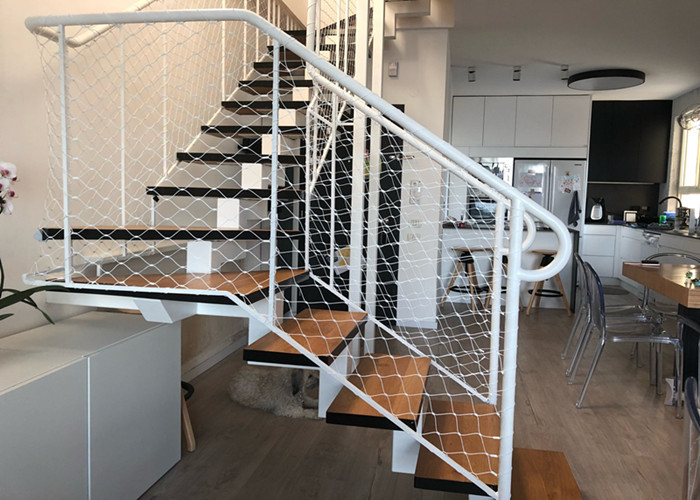

3.Application: It is widely used in: Animal Enclosure mesh, animal cages, bird netting, Agriculture,Residential,Sports, stairway and Fall Security, Etc.

CE Sus 316 Wire Rope Mesh X Tend Flexible Stainless Steel 27

CE Sus 316 Wire Rope Mesh X Tend Flexible Stainless Steel 28
